Your retreat in the wild
Nook Suite
Suite
fully equipped for $145k
chassis sourced and provided by client
A Sprinter 170” camper van designed with 2 rooms and bathroom for the ultimate comfort while on the road.

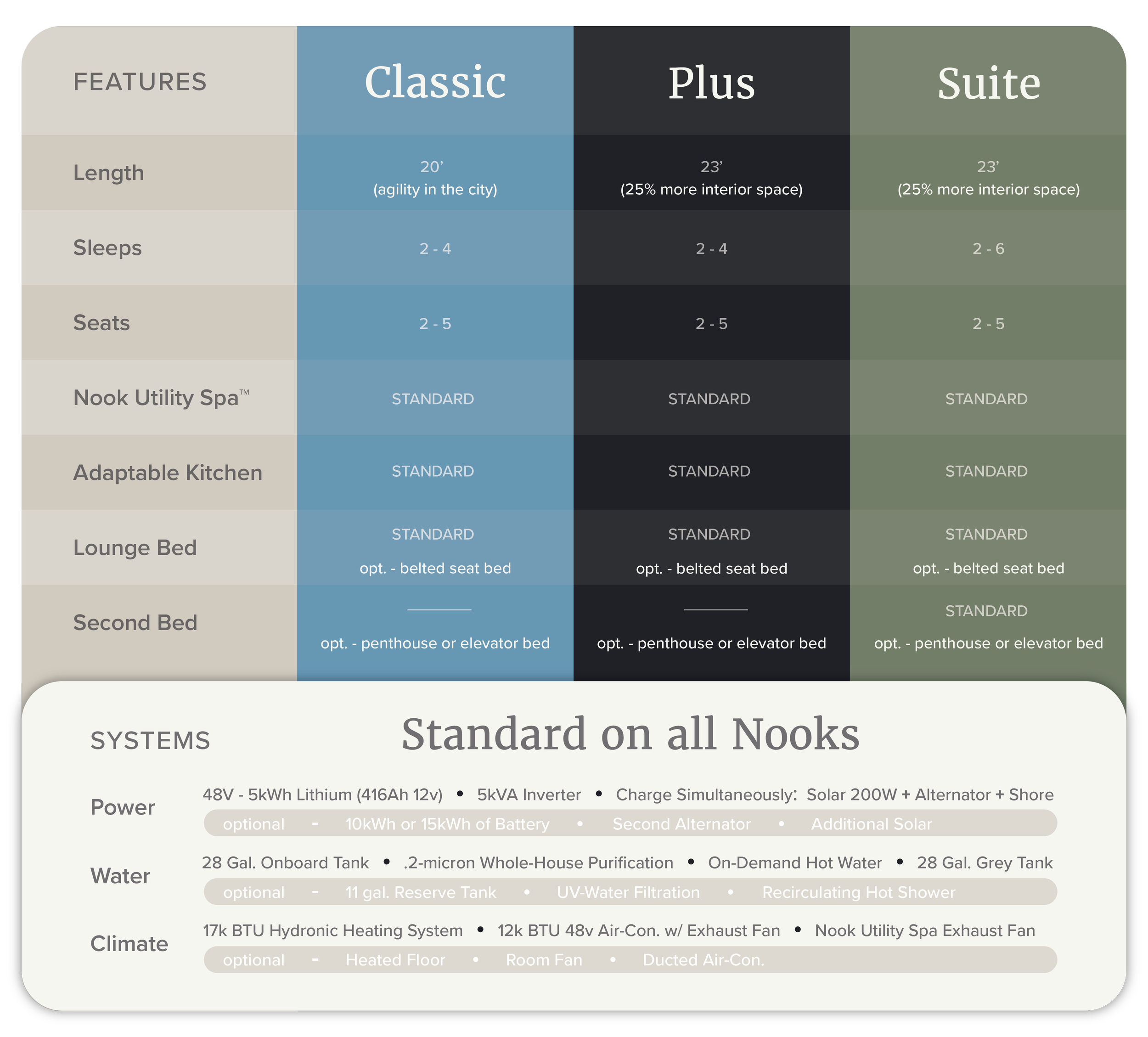

Standard Features
Interior
Kitchen: 50" wide with
hidden sink and double
induction stovetop
Couch: 6’4” wide with
sliding depth adjustment
Construction: aluminum
framing, marine
hardware, and
aerospace panelling
Utility Spa: large
bathroom with storage
Power
Battery: 48V, 5kW battery
up to 15kW*
Inverter: 5kVA
Connected: remote app access
Solar: 200w,up to 800w*
Charging: 30A shore,
1300W alternator, 4000W
optional*
Outlets: four 120V, three
USB-C, three USB-A
Water
Heat: up to 120F, on
demand
Filter: 0.2 micron whole-
house water, UV-C
optional*
Fresh Water: 28 gallons,
up to 39 gallons*
Grey Water: 28 gallons
Grey Tank Valve:
electronic with hose
fitting
Climate
Insulation: all-season
ready, 3 layers with
Havelock wool, 1/2”
polyiso floor insulation
Heater: climate
controlled air + water
A/C: 12k BTU 48V
rooftop unit
Roof Fan: in cabin and spa
Windows: dual-sliders
with integrated black-out
and bug screens
Front of Van

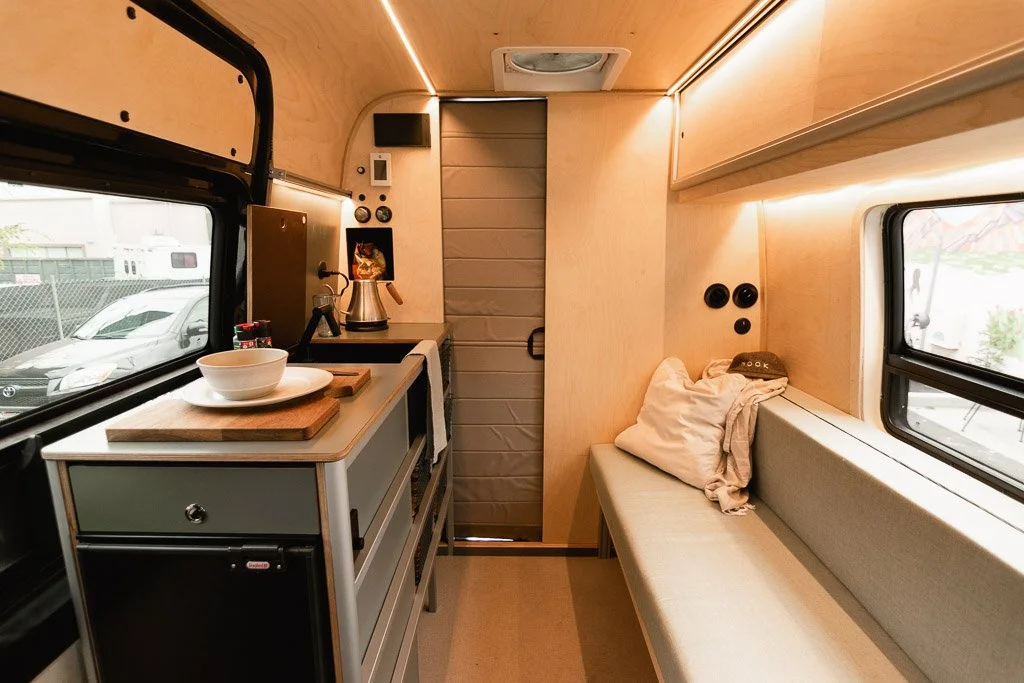

We developed a luxury interior camper van space that’s able to accommodate all of your storage needs. Open, slide, swivel, or close these furniture pieces to transform the layout and comfortably prepare for your day, work remotely, host friends, or catch some Z’s.

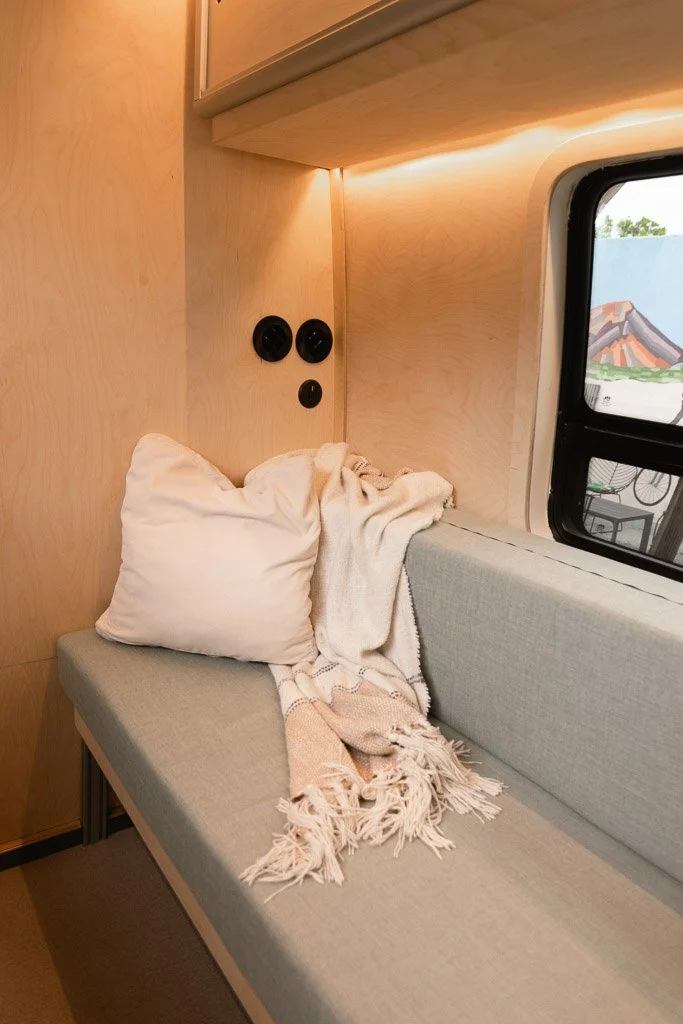

Living Room
-
Tailor your sitting and sleeping arrangements to your exact preferences. Effortlessly transition from sofa to full bed, or even into two separate beds. The space beneath the couch provides ample space for suitcases, storage bins, or your furry friend's bed.
76” x 50” when fully extended
Natural latex foam mattress
Washable Sunbrella cover
-

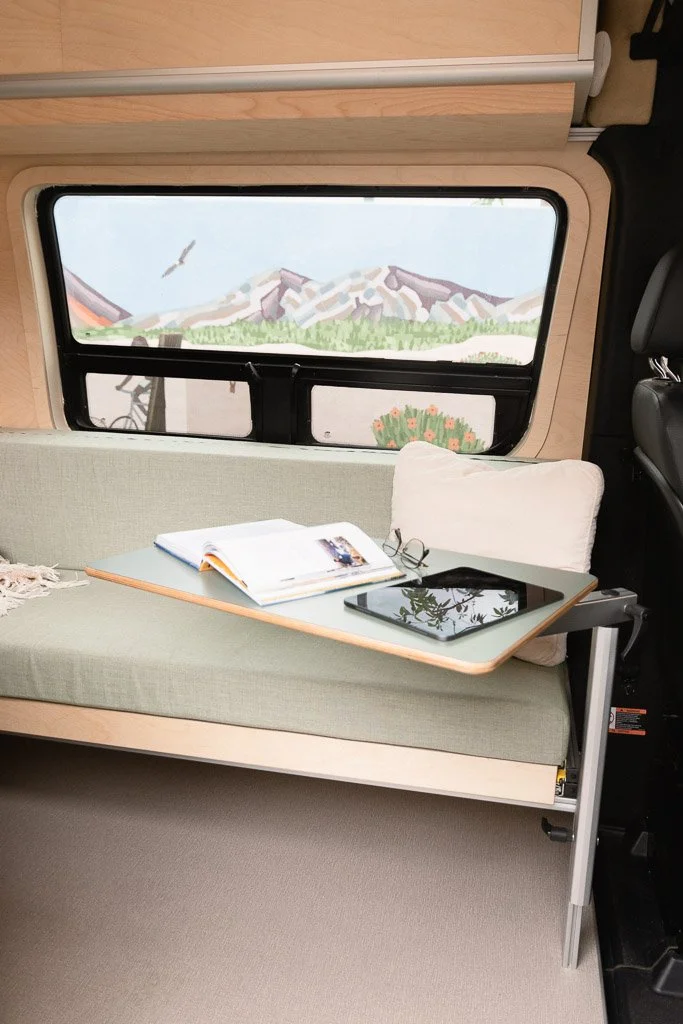

This stand up desk provides two leafs and adjusts down with ease to use while sitting. The swiveling leaf can be used in a number of positions and reaches the passenger seat.
-

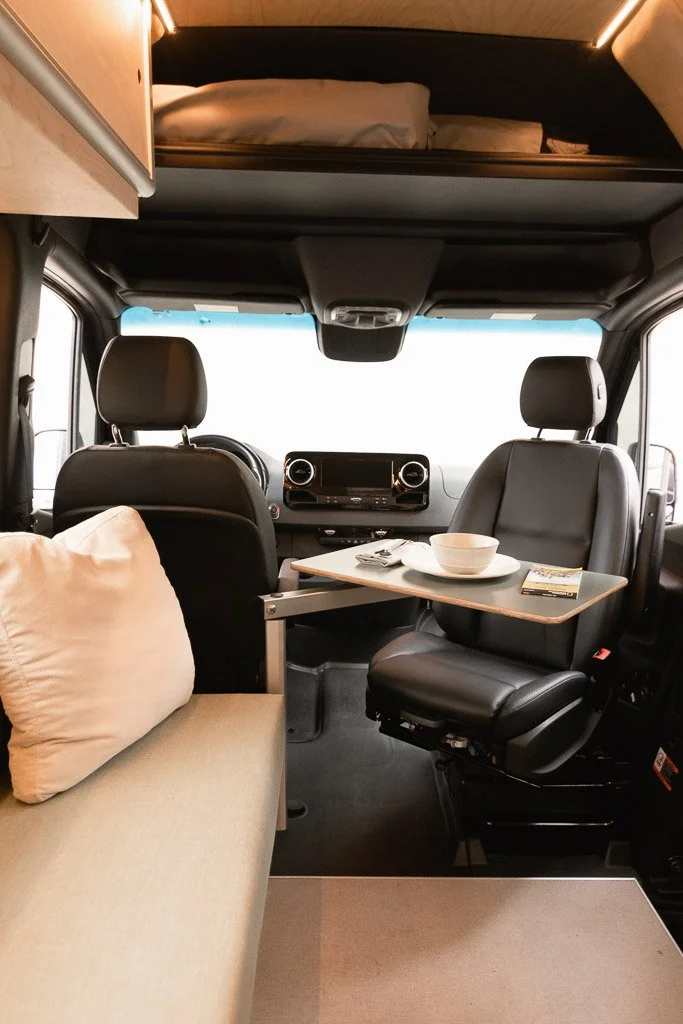

Maximize your living space by swiveling the front cab seats while parked. It opens up the entire van and provides inclusive seating for hosting friends.
The Lounge Bed Modes
Couch | 19” Width
Single Bed | 26.5” Width
Double Bed | 51” Width
Split Bed | 26.5” + 24.5” Width
Overall Length | 76”
Rear of van

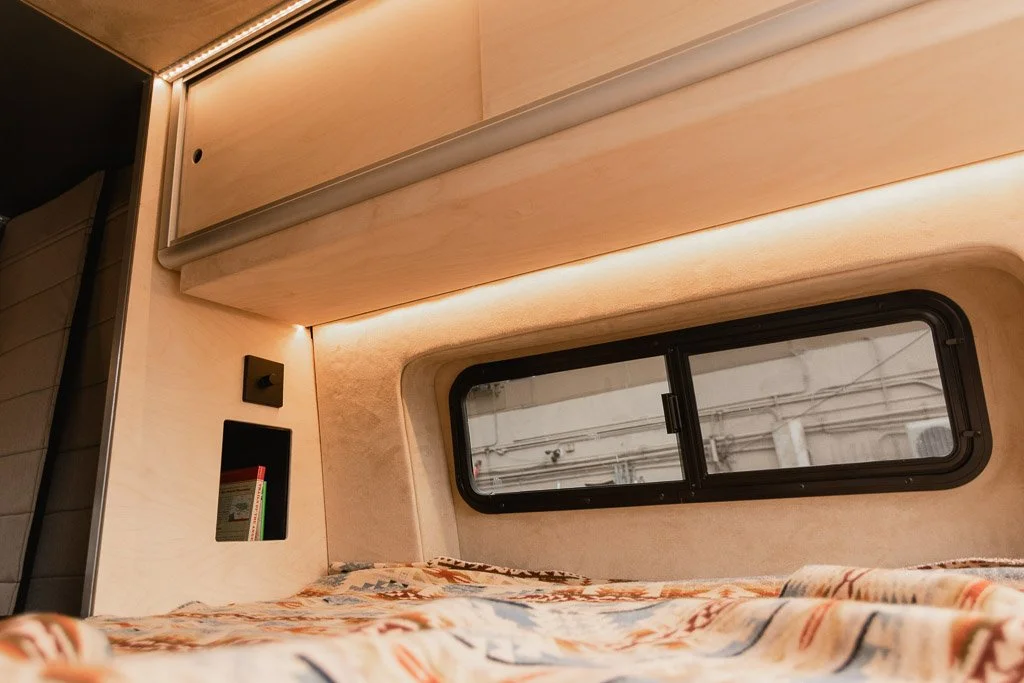

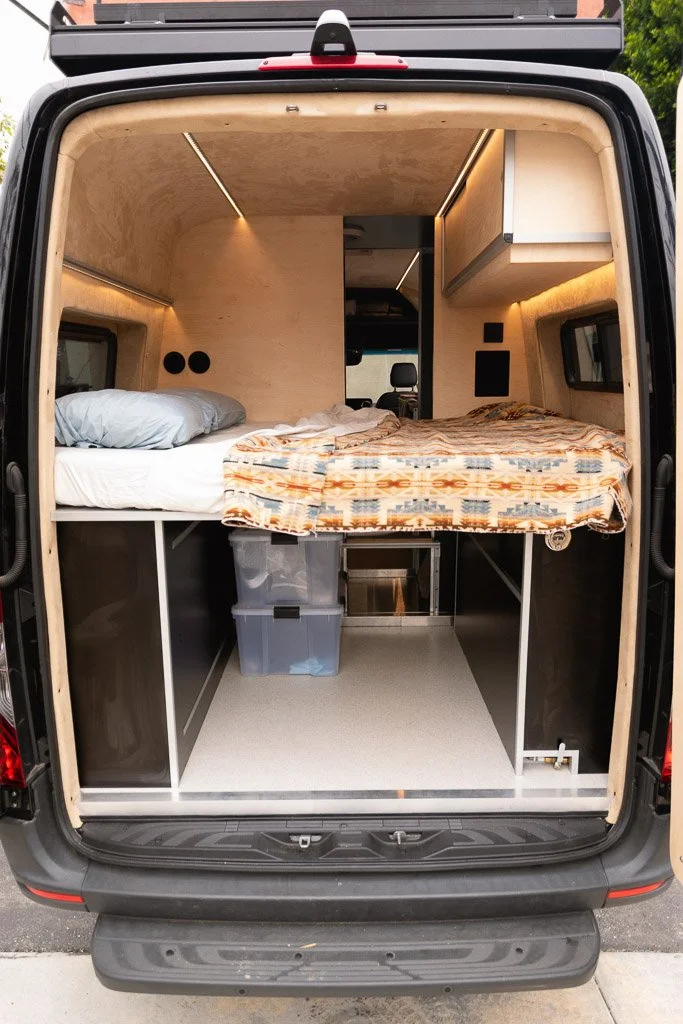

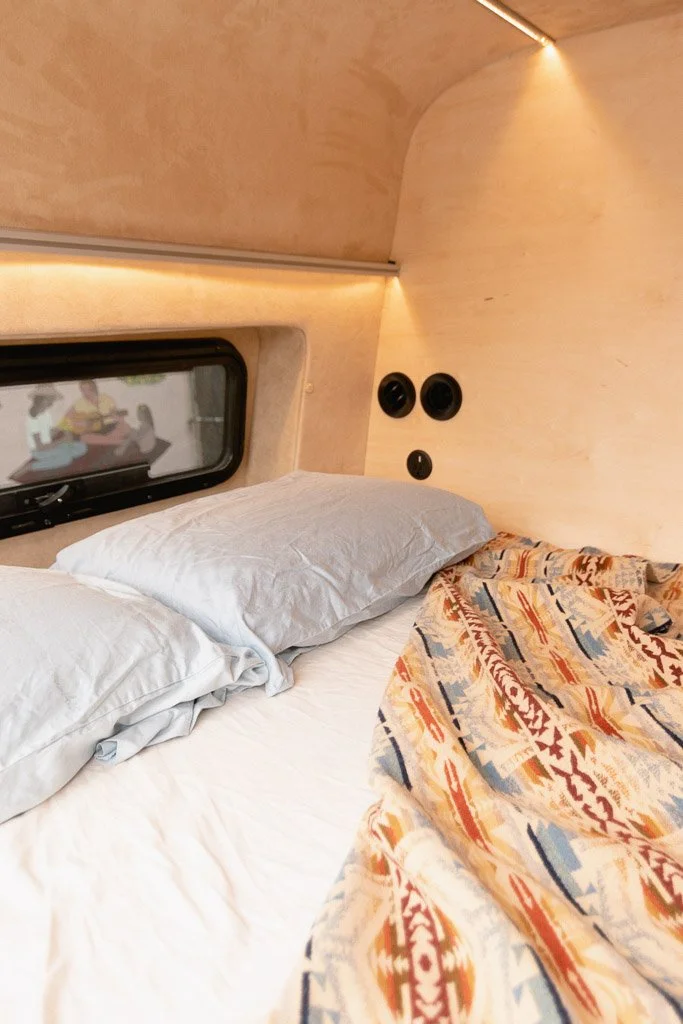

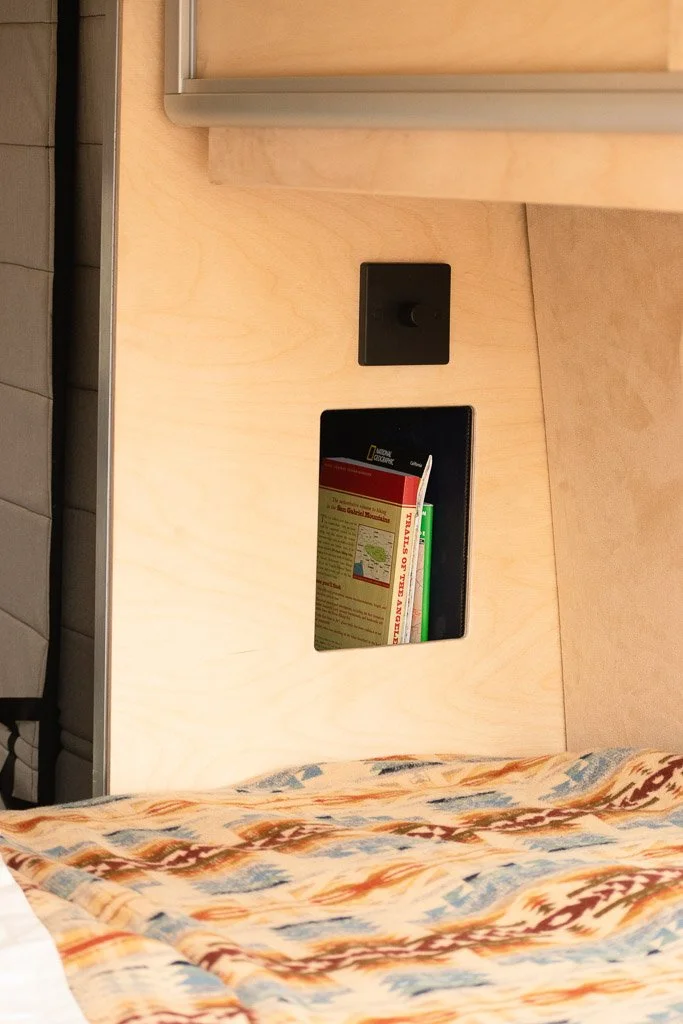

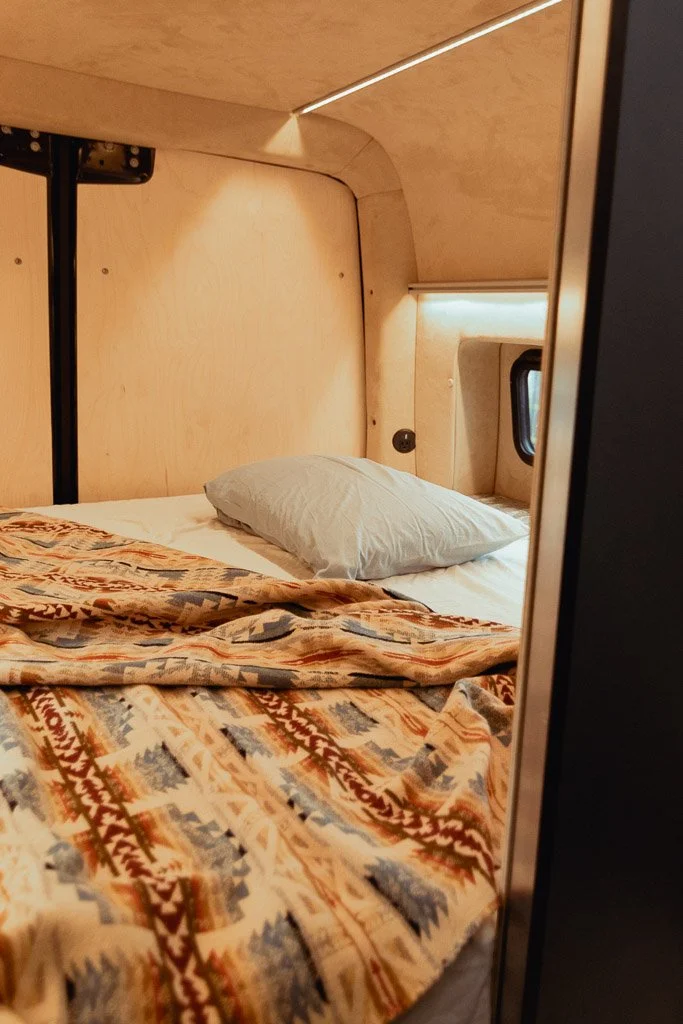

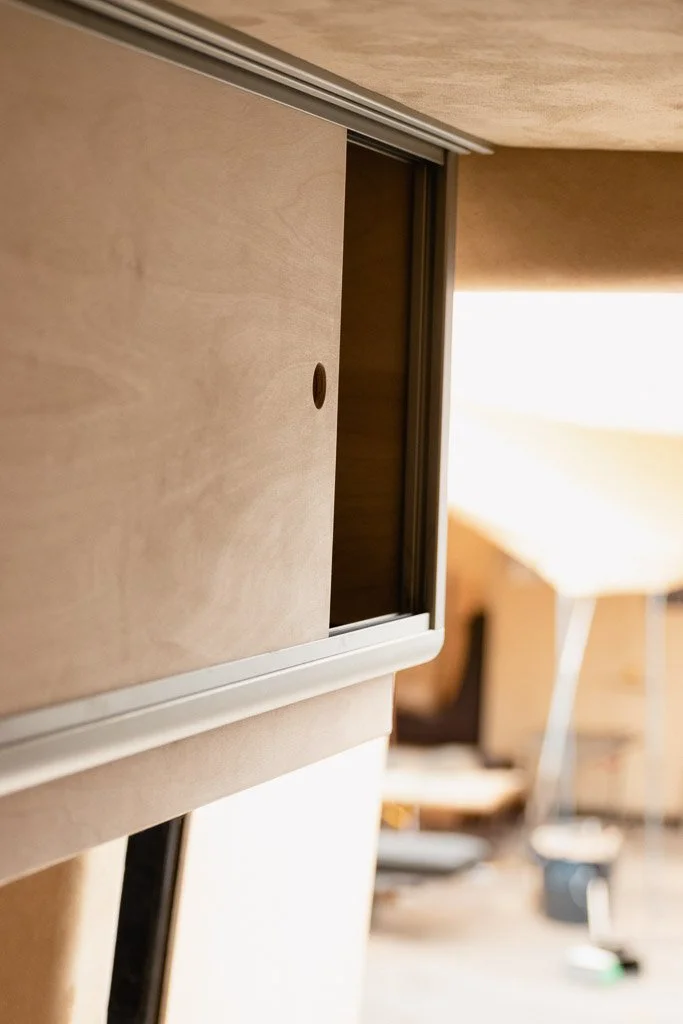

This raised bed provides a generous garage space underneath to fit bikes and all kinds of gear. The bed itself is queen bed width and includes a 10” custom mattress. The room includes storage for all kinds of items including an upper cabinet, cubby spaces and t-slot for mounting of additional hooks and pockets.
Bedroom
-
Tailor your sitting and sleeping arrangements to your exact preferences. Effortlessly transition from sofa to full bed, or even into two separate beds. The space beneath the couch provides ample space for suitcases, storage bins, or your furry friend's bed.
76” x 50” when fully extended
Natural latex foam mattress
Washable Sunbrella cover
-
This stand up desk provides two leafs and adjusts down with ease to use while sitting. The swiveling leaf can be used in a number of positions and reaches the passenger seat.
-
Maximize your living space by swiveling the front cab seats while parked. It opens up the entire van and provides inclusive seating for hosting friends.
In Living Room

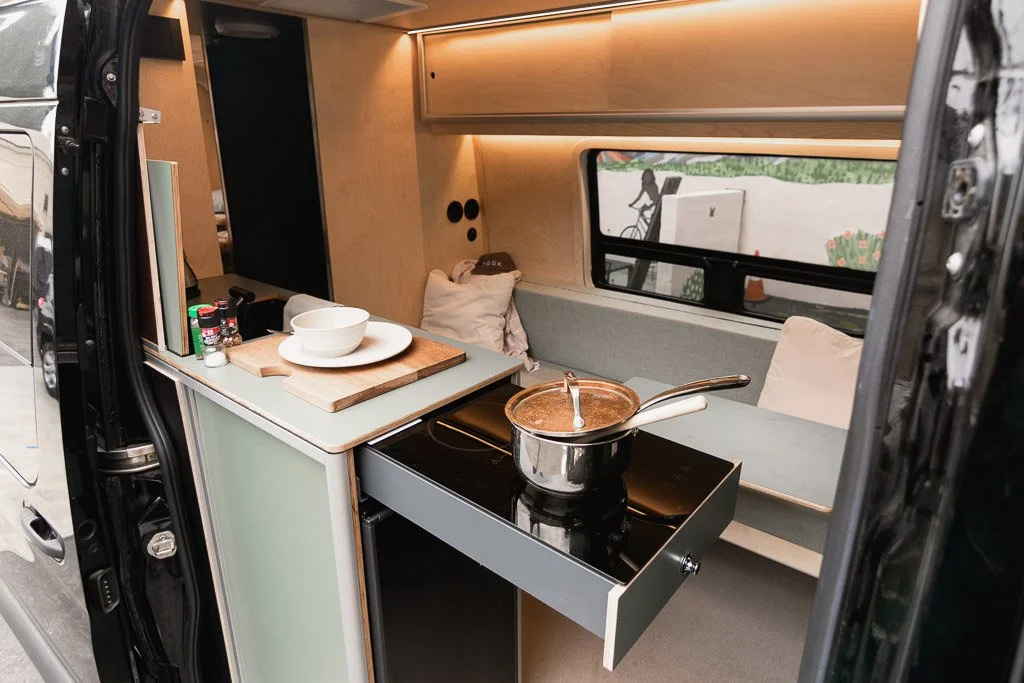

The Kitchen

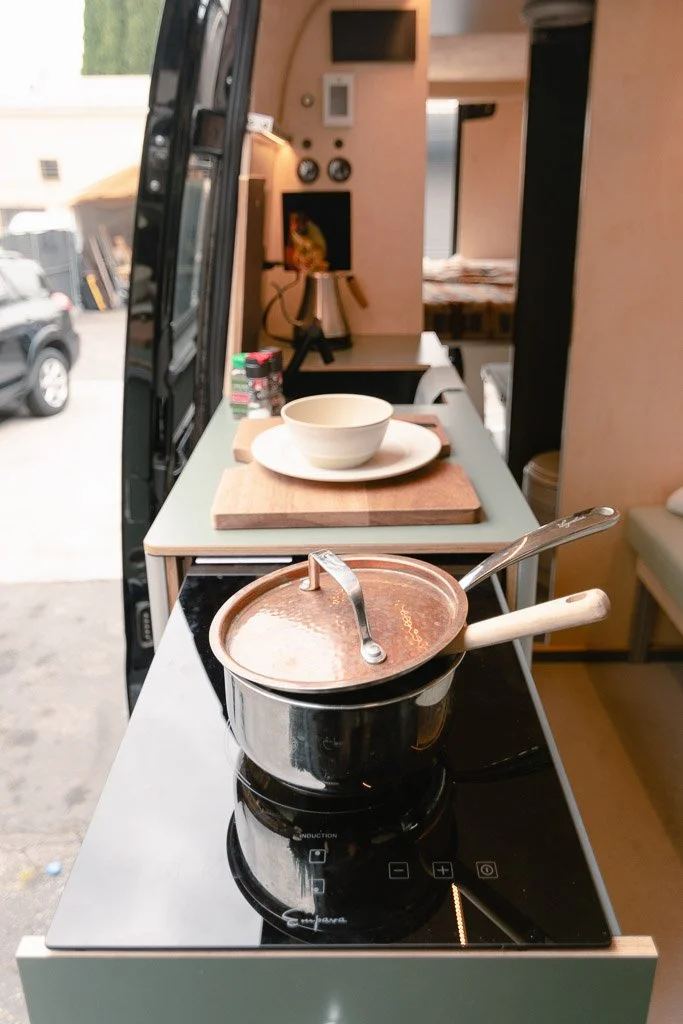

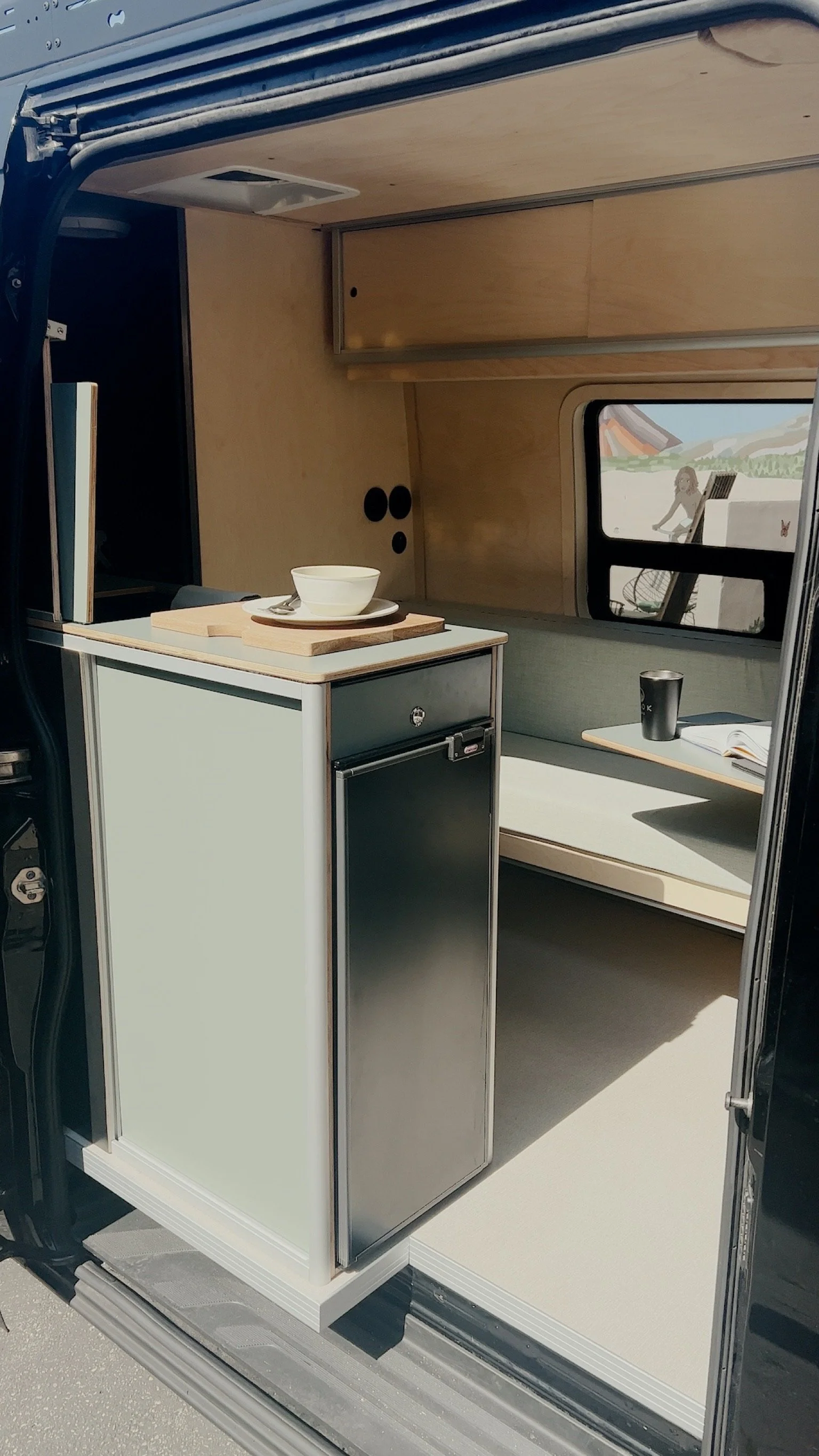

The Hideaway Chef’s Kitchen offers everything the standard Hideaway Kitchen does but with more fridge space, counter space, and storage space in your Sprinter 170” camper van. We’ve added a slide-out pantry and dish-draining drawer, a spot for your trash and recycling, and room for a toaster oven or microwave.
-
Drawer
-
The custom structural felt bins are custom designed with inserts to travel where you need them while keeping heavy items secure and rattle free.
-

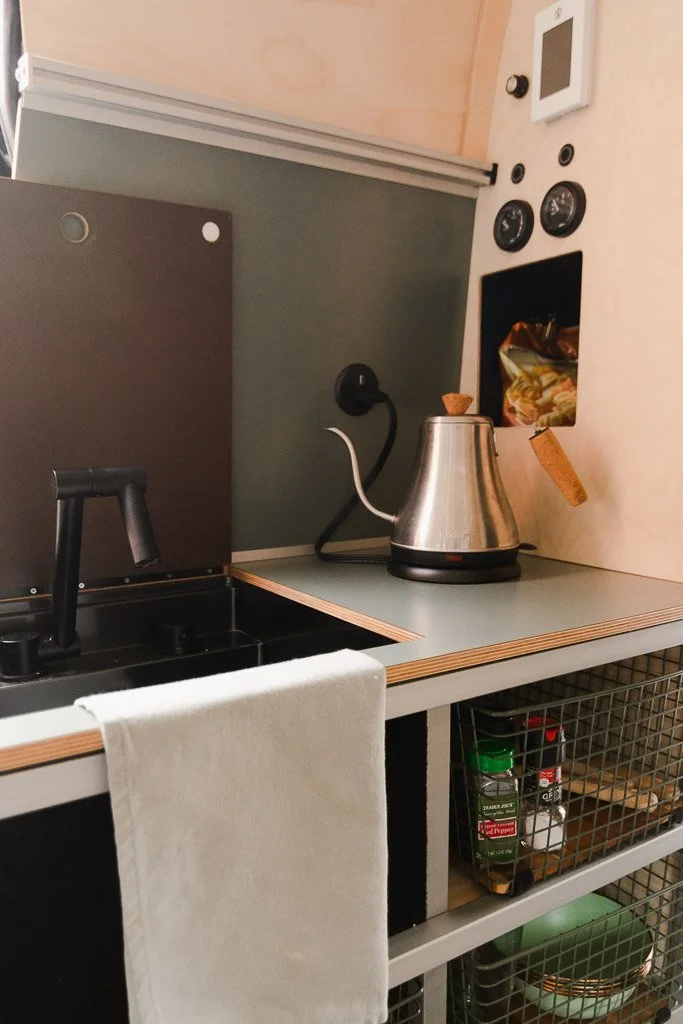

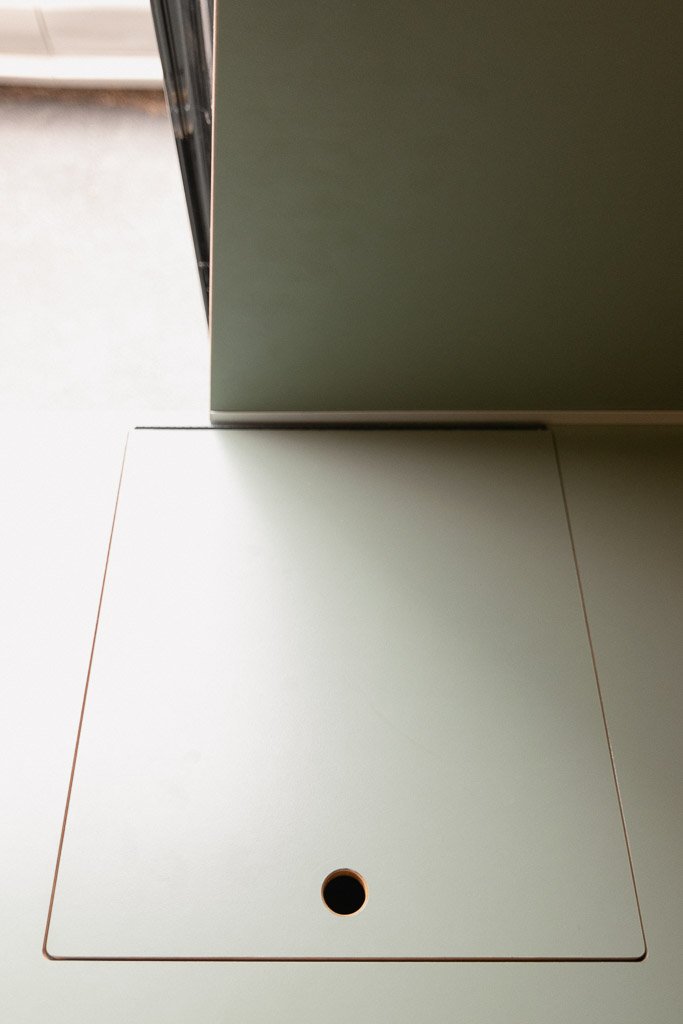

This sink has hot and cold water, a foldable faucet, and a sink strainer to catch any debris. The magnetic sink cover effortlessly stays up when the sink is in use and turns into more counterspace when closed.
-

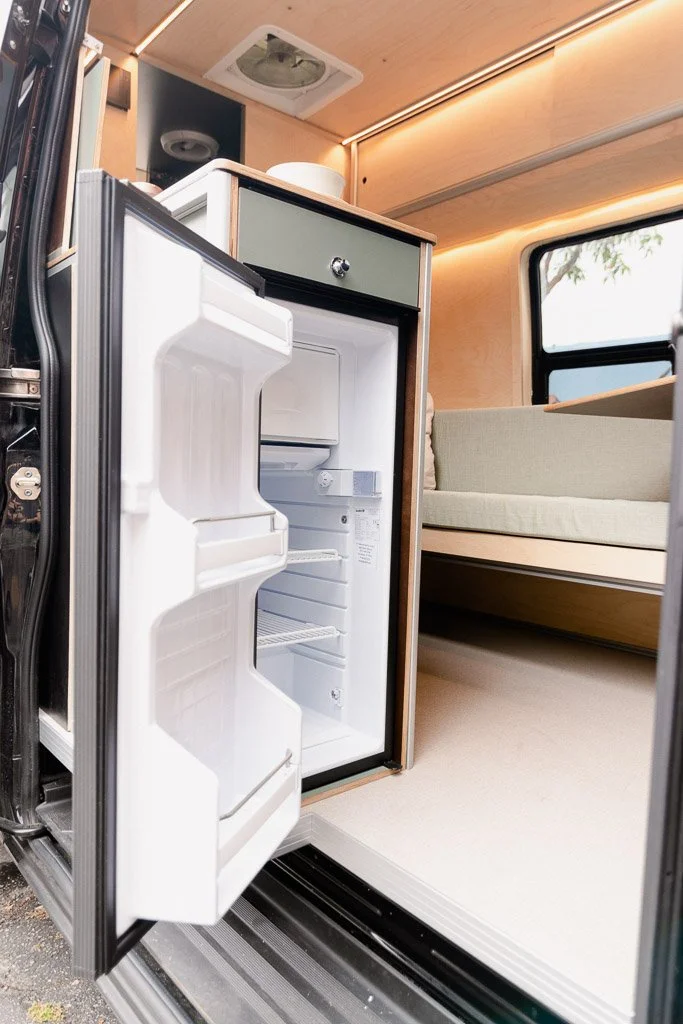

With 3.9 cubic feet of fridge space with another 0.5 cubic foot freezer, you’ll have ample space to store all of your perishables.
Interior

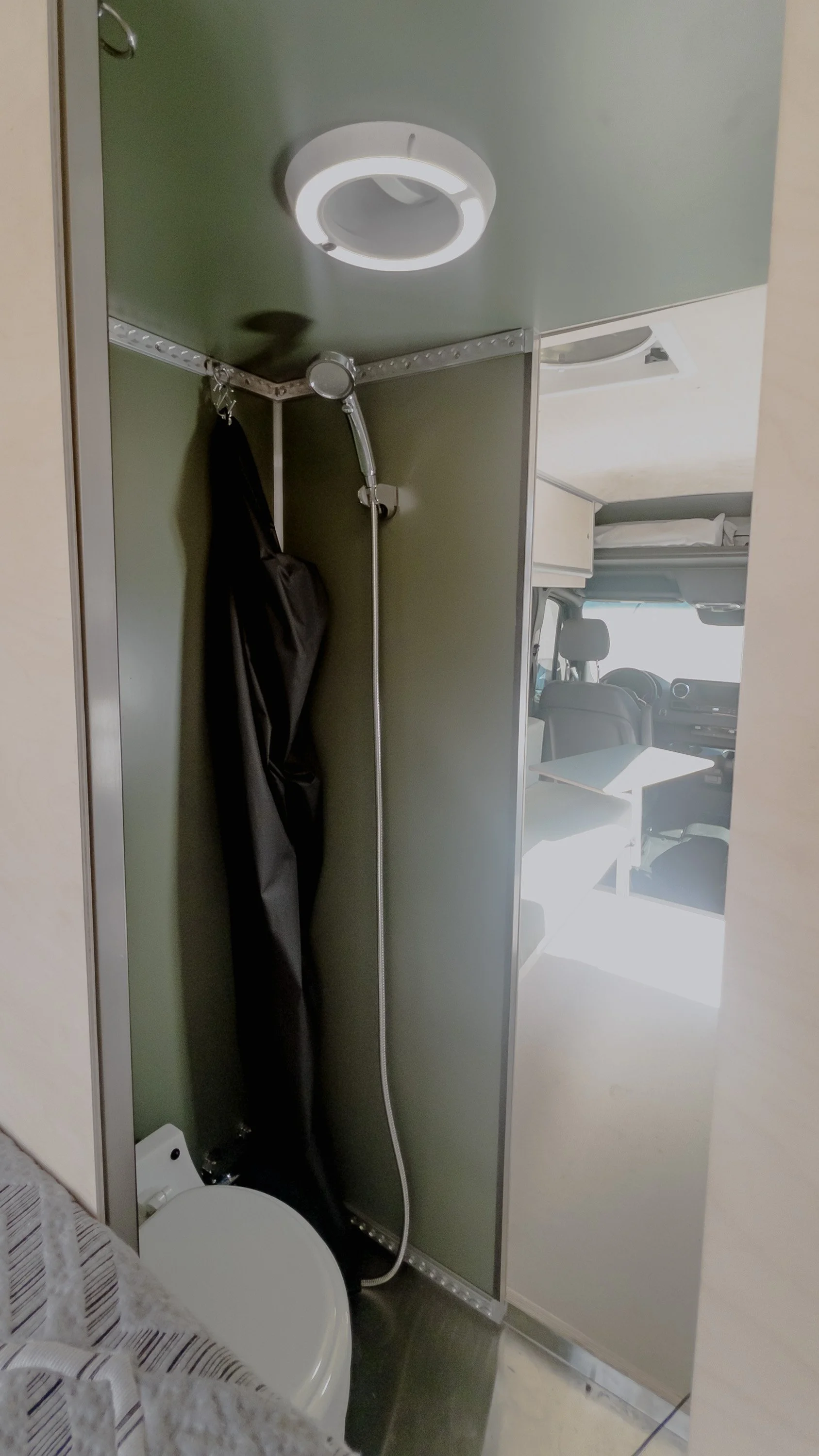

The Utility Spa
The Spa is the most luxurious camper van shower and bathroom available for the Sprinter 170”. Clean, private, and separate from the rest of the interior, this waterproof room is a large and luxurious spa space that can transform into a storage area for your outdoor gear if needed. Learn more about The Spa here.
-

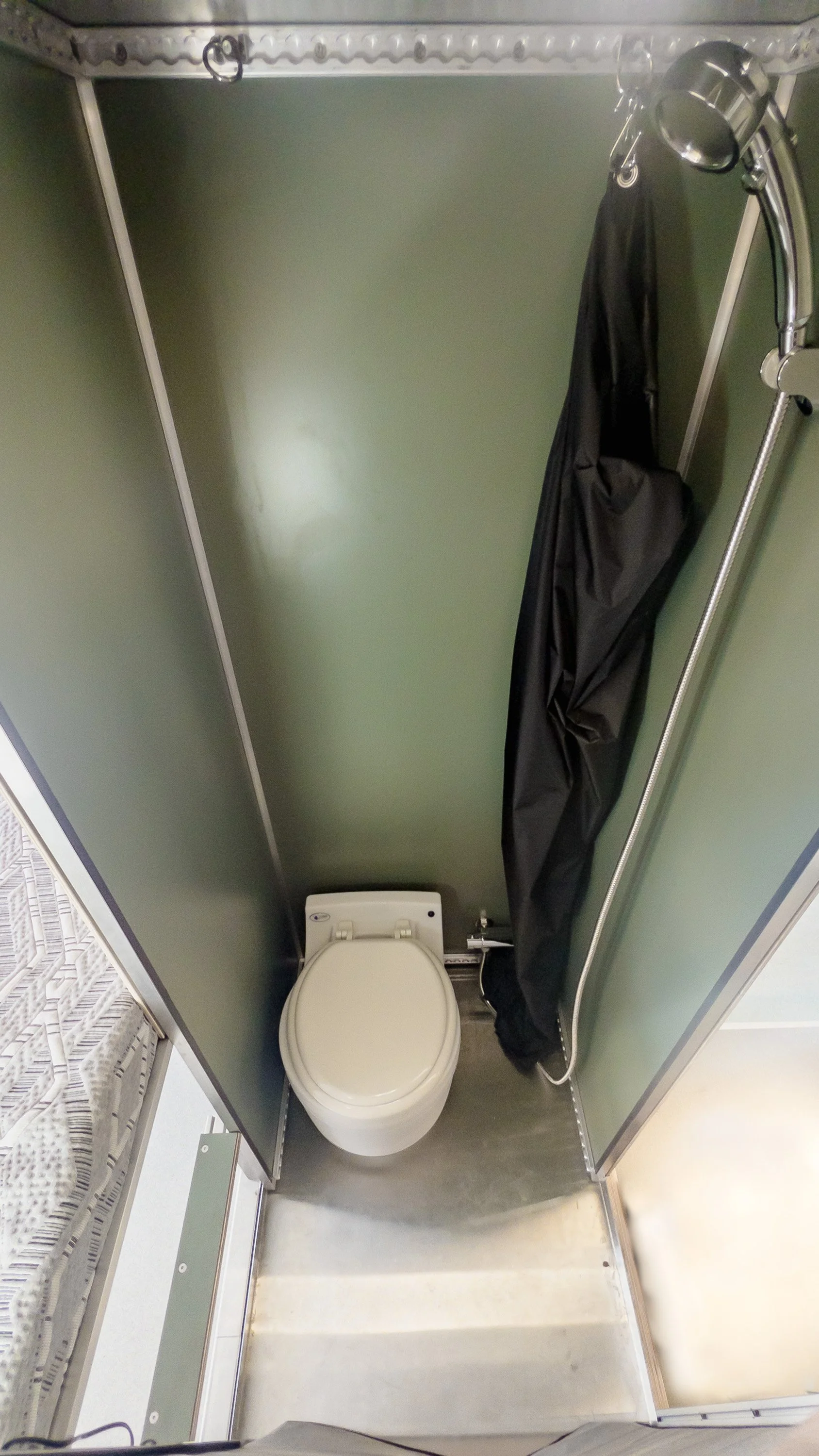

Travel with peace of mind, knowing that a pristine and private bathroom awaits whenever the need arises. The Laveo toilet vacuum-seals each flush, ensuring no odors and effortless disposal.
-

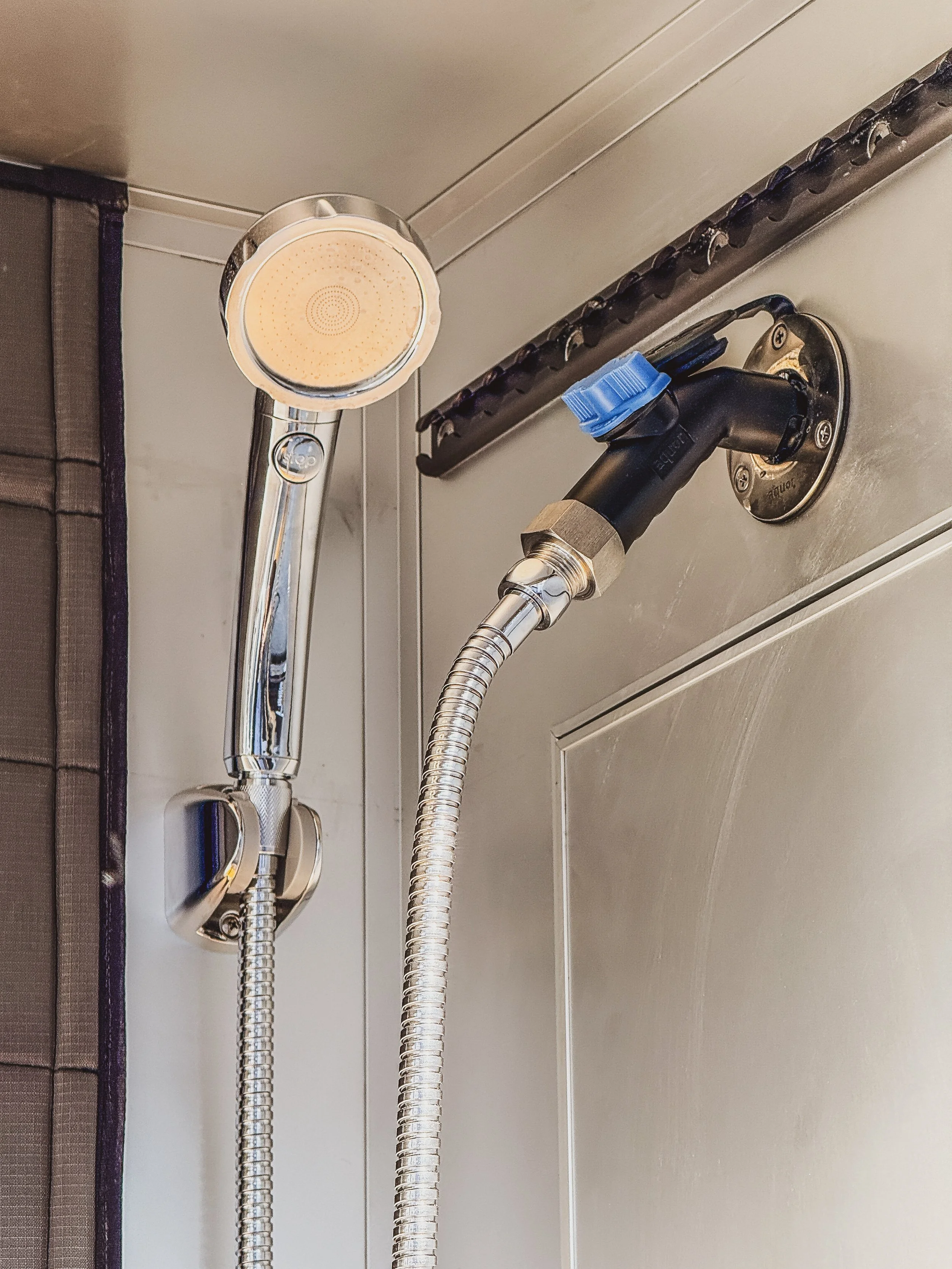

Indulge in a spacious and steam-filled shower, reminiscent of the comforts of home. This revitalizing experience surpasses all other camper van bathrooms, earning it’s title as the “spa.”
-
We want your outdoor gear and garments to have a cozy place to call home too. Rinse off the dirt, turn on the ceiling fan, and rest easy knowing your belongings are safely stowed away and sheltered from the elements.
A Connected Experience
Connectivity
Optional Starlink
Optional antenna with dual SIM card modem & Wi-Fi
App-connected power & climate systems
Climate Control
17k BTU diesel heater with optional radiant heated floors
12k BTU 48v air-conditioning
Continuous hot water with optional recirculating shower for The Spa shower, bathroom, and toilet
Safety & Security
Optional Thunderbolt lock system on all doors
Optional 3M Scotchshield security window film
Optional internet connected multi-camera security system
Wool and foam insulation layers significantly reduce sound transmittance and lend to a more secure environment
48v Off-Grid Powerhouse
5-15KW battery capacity
200-800W roof-mounted solar panels
Shore & alternator charging
4 interior outlets with USB, 1 exterior outlet

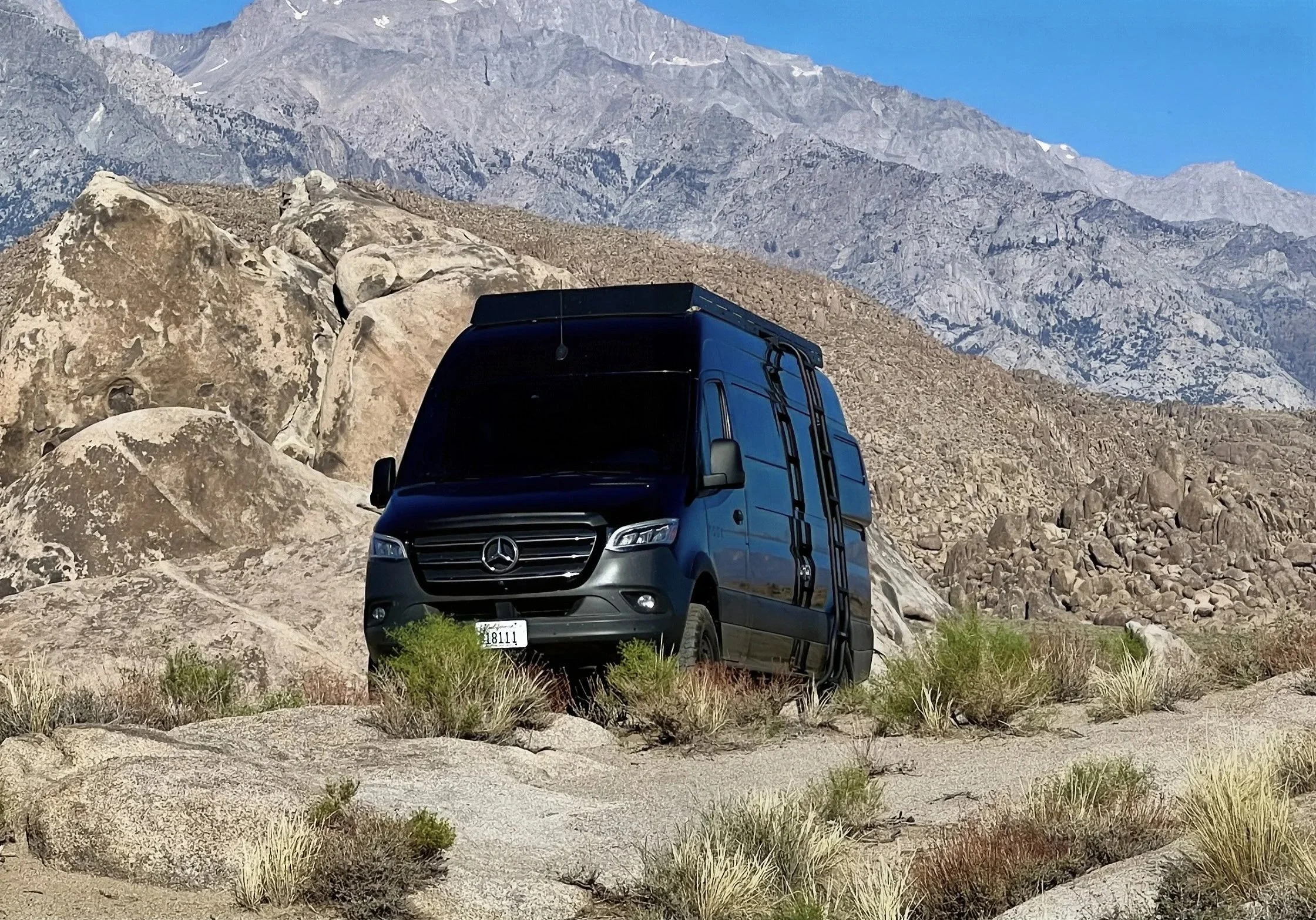

The Sprinter 170” Chassis
Exterior

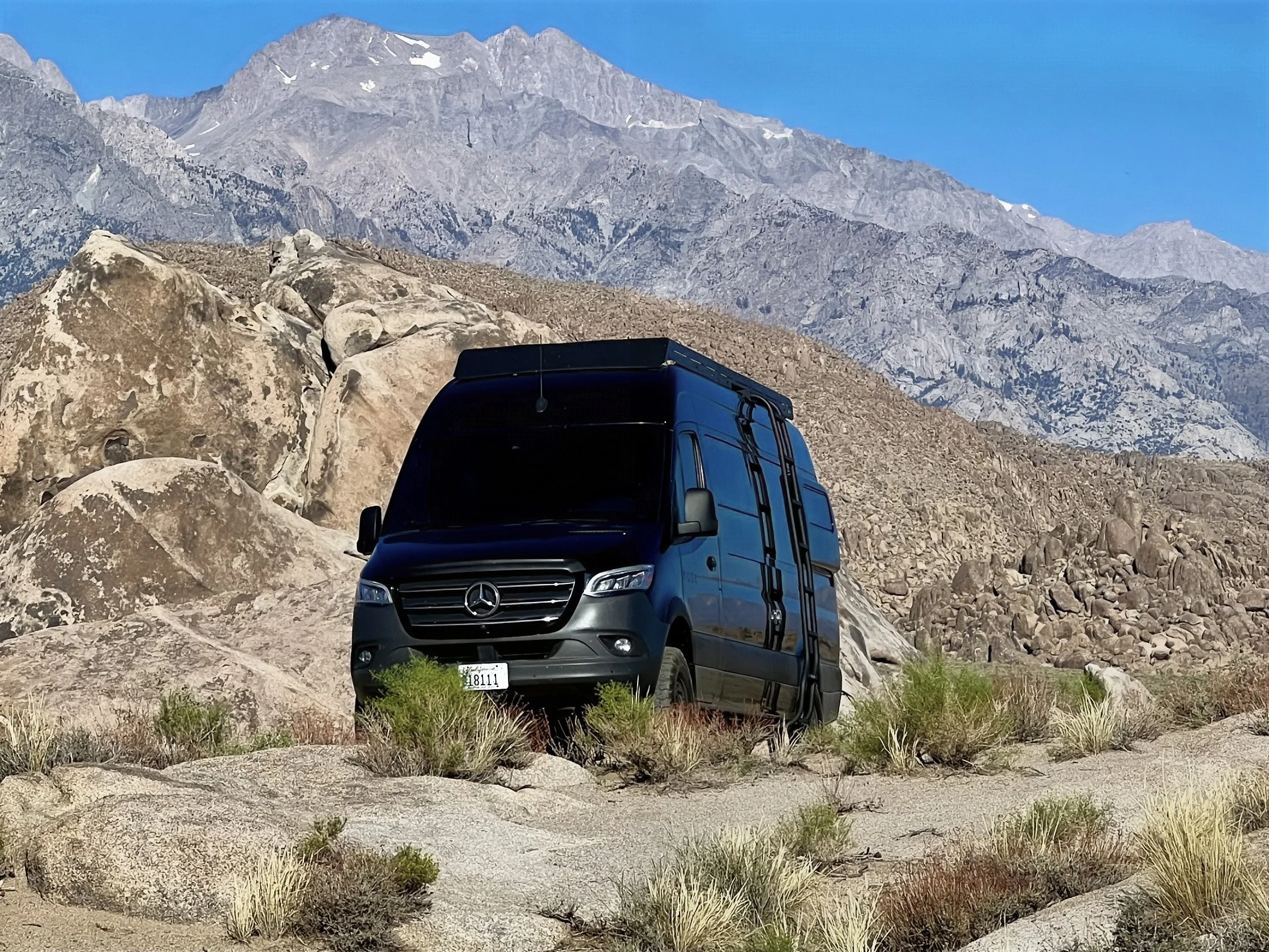

Using the spacious & advanced 170” Mercedes Sprinter as our platform, we build an interior that belongs in a Mercedes with unique modern style, technology, and innovative use of space. We add exterior gear and chassis components to support your use case and enhance the freedom provided by camper van travel.
